LTI Inverters
| Providing Uninterruptible Power for: Industrial - Petrochemical - Communications - Emergency Services - Utilities - Banks - Data Centers - Hospitals - Phone Systems - Chemical Processes - Computers - Pulp and Paper - Tire - Glass - Textile - Distributive Central Systems - Lighting - Automotive Manufacturing - Oil and Gas Pipeline Controls - Pharmaceutical Manufacturing - and more… |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
 | |  | |  | |  | |  |
| Series 1000 Rack and Floor Mount Inverters Single Phase Output 1 - 10 KVA |
| Series 1000 Inverters |
| 3-10KVA 120VDC Rack/Floor Mount |
| 3-10KVA 120VDC Floor Mount |
| ProUPS Inverters |

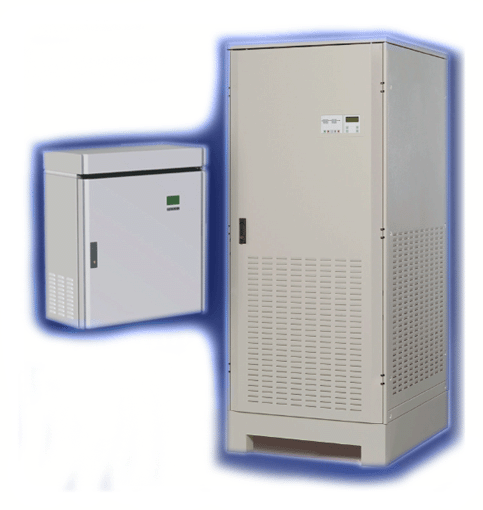

| ProUPS Floor Mount Inverters Single/Three Phase Outputs 10 - 60 KVA 120VDC |
The LTI 120VDC ProUPS inverter line is designed for industrial
applications as well as office use. The LTI inverter converts the
DC input source into clean, reliable, uninterruptible AC power.
The wide DC input acceptance range of 105vdc to 150vdc
allows operation from different types of DC power plants. The
inverter comes standard with a true solid state Static Transfer
Switch, front panel monitoring and controls.
NOTE: LTI ProUPS Inverters are also offered in 240V and
360V battery link voltages as well.
applications as well as office use. The LTI inverter converts the
DC input source into clean, reliable, uninterruptible AC power.
The wide DC input acceptance range of 105vdc to 150vdc
allows operation from different types of DC power plants. The
inverter comes standard with a true solid state Static Transfer
Switch, front panel monitoring and controls.
- True On-Line Technology for Maximum Power
Protection - Available in 10, 15, 20, 30, 40, 50, and 60KVA Power
Ratings - Single or Three Phase Outputs
- 50Hz and 60Hz Models
- 20-Year Expected Design Life
- Solid State Static Transfer Switch Standard
- Copper Wound Transformers
- LCD Monitoring Panel
- LED Power Flow Diagram
- RJ45 Communications Port
- Form "C" Alarm Interface Contacts
- Light Gray Powder Coat Finish
- RJ45 Network Communications Kit
- Meets UL1778, NEMA, NEC, ANSI, and FCC
Requirements
NOTE: LTI ProUPS Inverters are also offered in 240V and
360V battery link voltages as well.
| 10-20KVA 120VDC Floor Mount |
The reliable and versatile Inverters from LTI provide clean,
uninterruptible AC Power to loads such as; central phone
systems, PCs, test equipment, alarm monitors, and other critical AC
powered devices. The space saving rack mount inverter design is
well suited for sensitive telecommunication and data processing
installations. The robust inverters can also power more demanding
loads such as motors, rectifiers, switch mode power supplies and
nonlinear loads.
The Series 1000 inverter is a highly efficient and cost-effective
solution for your power problems. Our continuous on-line inverter
design utilizes an internal static switch to insures maximum critical
load protection. Our rack mount NEMA1 enclosures mount easily
into a standard 19” or 23” rack and may also be floor mounted.
Each model can be custom built with a variety of Input and Output
voltages to choose from. The Series 1000 inverters are designed
for use with 24V, 48V, and 120V external battery links.
Other options include:
uninterruptible AC Power to loads such as; central phone
systems, PCs, test equipment, alarm monitors, and other critical AC
powered devices. The space saving rack mount inverter design is
well suited for sensitive telecommunication and data processing
installations. The robust inverters can also power more demanding
loads such as motors, rectifiers, switch mode power supplies and
nonlinear loads.
The Series 1000 inverter is a highly efficient and cost-effective
solution for your power problems. Our continuous on-line inverter
design utilizes an internal static switch to insures maximum critical
load protection. Our rack mount NEMA1 enclosures mount easily
into a standard 19” or 23” rack and may also be floor mounted.
Each model can be custom built with a variety of Input and Output
voltages to choose from. The Series 1000 inverters are designed
for use with 24V, 48V, and 120V external battery links.
Other options include:
- External rack or wall mounted bypass switch
- Separate bypass input
- Floor Mount Feet
- Digital meter panels
- Frequency meters
- Surge suppression
- Forward Transfer
- Alarm extension

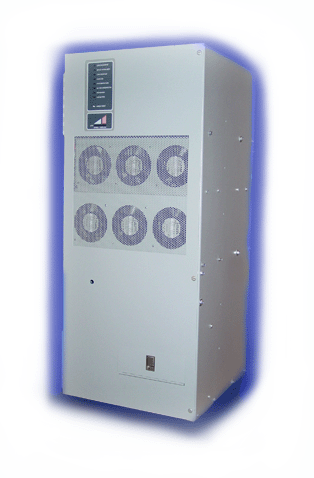

| 5-10KVA 48VDC Rack/Floor Mount |
| © 2010 LTI Power Systems Inc. | 888-327-5050 |
| 1-3KVA 24/48VDC Rack/Floor Mount |
Made in the USA
