LTI Static Transfer Switches
| Providing Uninterruptible Power for: Industrial - Petrochemical - Communications - Emergency Services - Utilities - Banks - Data Centers - Hospitals - Phone Systems - Chemical Processes - Computers - Pulp and Paper - Tire - Glass - Textile - Distributive Central Systems - Lighting - Automotive Manufacturing - Oil and Gas Pipeline Controls - Pharmaceutical Manufacturing - and more… |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| Wall or Rack Mount Static Transfer Switch 20-100A For use with 120V AC |
| Static Transfer Switches |
The LTI static switch will provide virtually uninterruptible
power to any critical load by automatically or manually
selecting between one of two AC input sources. If the
preferred source deviates outside preset limits, the unit
will instantaneously transfer to the secondary source.
Upon return of the preferred source to within acceptable
limits, the static switch will automatically transfer the load
back. This insures that the sensitive load is always being
supplied the best available power from two sources.
The switches offered range in amperage from 20A-100A
and each can be configured with single or double poles.
power to any critical load by automatically or manually
selecting between one of two AC input sources. If the
preferred source deviates outside preset limits, the unit
will instantaneously transfer to the secondary source.
Upon return of the preferred source to within acceptable
limits, the static switch will automatically transfer the load
back. This insures that the sensitive load is always being
supplied the best available power from two sources.
The switches offered range in amperage from 20A-100A
and each can be configured with single or double poles.

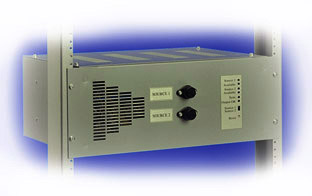

Rack Mount Static Switch
- Ultra Fast 1/4 cycle transfer between AC
sources - All solid state switching devices (no
contactors or relays to fail) - Selectable manual or automatic transfers
- Industrial design for high reliability
- Break-before-make switching eliminates risk
of an out-of-phase transfer between sources - Preferred input source selector switch
- Integral surge suppression on both input
sources - User-friendly display
- Selectable transfer times for delayed transfer
requirements - Alarm interface Form "C" contacts
- Rack or wall mount NEMA1 enclosure
 | |  | |  | |  | |  |
| © 2010 LTI Power Systems Inc. | 888-327-5050 |
Made in the USA
