LTI Online UPS
| Providing Uninterruptible Power for: Industrial - Petrochemical - Communications - Emergency Services - Utilities - Banks - Data Centers - Hospitals - Phone Systems - Chemical Processes - Computers - Pulp and Paper - Tire - Glass - Textile - Distributive Central Systems - Lighting - Automotive Manufacturing - Oil and Gas Pipeline Controls - Pharmaceutical Manufacturing - and more… |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
 | |  | |  | |  | |  |
| ProUPS Industrial True Online UPS Single/Three Phase Output 10 - 300 KVA |
| ProUPS True Online UPS |
The LTI Power Systems ProUPS line of True Online UPS has proven
to be the most versatile power protection option for small-office to
industrial applications.
Utilizing total input to output isolation, the LTI Power Systems'
Double Conversion True On-Line UPS first converts the
contaminated incoming power into a regulated and filtered direct
current (DC). The DC then charges the batteries, and is
reconstructed into a new isolated and clean alternating current
(AC). This pure AC is continuously supplied to your critical load,
extending its life by providing protection against brownouts,
blackouts, and even lightning strikes.
ProUPS Basic Info:
to be the most versatile power protection option for small-office to
industrial applications.
Utilizing total input to output isolation, the LTI Power Systems'
Double Conversion True On-Line UPS first converts the
contaminated incoming power into a regulated and filtered direct
current (DC). The DC then charges the batteries, and is
reconstructed into a new isolated and clean alternating current
(AC). This pure AC is continuously supplied to your critical load,
extending its life by providing protection against brownouts,
blackouts, and even lightning strikes.
ProUPS Basic Info:
- True Online
- Floor Mount
- 3PH-in/3PH-out, 3PH-in/1PH-out
- 120, 240, 360, and 480VDC Battery link voltages
- 50 / 60Hz available
- Various Battery Types / Runtimes
- Customizable to your specs
Standard Features:
 | True Online technology | |
| Input Power Factor Correction Rectifier | |
| Input THD <8% | |
| True double conversion design | |
| Full-load rated no-break dual solid-state static switch | |
| 20 year design life | |
| Copper-wound transformers | |
| LCD monitoring panel with power-flow diagram | |
| Dual Input for optimum load protection | |
| Manual Transfer Pushbutton | |
| RS232/RJ45 SNMP Network Communications Kit | |
| Form C Alarm Relay Interface contacts | |
| Shutdown software compatible | |
| Generator compatible rectifier input | |
| Designed to UL1778, NEMA, NEC, ANSI, and FCC specs | |
Other common add-ons include:
- External wall-mounted bypass switch
- External wall-mounted DC disconnect
- Rectifier surge suppression
- Air filtration systems
- Conformal coating on circuit boards
- Lockable breakers
- Emergency power off (EPO)
- Alarm Extension
- Customizable Battery Run-times
- Circuit Breaker Status Panel
- Cold-Start / Pre-Charge Switch
- Ground Fault Detection Kit
- Bypass Isolation Transformers
- Sidecar Cabinets
- Customized Nameplate Set
- Output Distribution Panels
- Spare Parts Kits (Levels I, II, III)
- Cascade Redundant Configurations

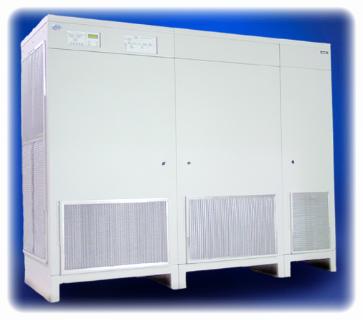

60-100KVA ProUPS
| © 2011 LTI Power Systems Inc. | 888-327-5050 |
10-15KVA ProUPS
Made in the USA
20-50KVA ProUPS
