LTI Inverters
| Providing Uninterruptible Power for: Industrial - Petrochemical - Communications - Emergency Services - Utilities - Banks - Data Centers - Hospitals - Phone Systems - Chemical Processes - Computers - Pulp and Paper - Tire - Glass - Textile - Distributive Central Systems - Lighting - Automotive Manufacturing - Oil and Gas Pipeline Controls - Pharmaceutical Manufacturing - and more… |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
 | |  | |  | |  | |  |
| Grid-Tie Inverters |
| Wall and Floor Mount Inverters Single/Three Phase Outputs 10 - 100 KVA |
The LTI Grid-Tie Inverter line is designed for industrial and
commercial wind turbine applications. These systems can be
equipped with power factor correction rectification to provide
the turbine's generator with the cleanest possible source. This
both increases turbine output, while increasing it's typical
lifespan. If configured without rectification, the inverter's wide
DC input acceptance range allows operation with numerous
turbine generator designs. The inverter comes standard with a
network communication kit, front panel monitoring, and a 5 year
warranty.
OPTIONS:
NOTE: LTI Grid-Tie Inverters are customizable to
specific wind turbine power curves.
commercial wind turbine applications. These systems can be
equipped with power factor correction rectification to provide
the turbine's generator with the cleanest possible source. This
both increases turbine output, while increasing it's typical
lifespan. If configured without rectification, the inverter's wide
DC input acceptance range allows operation with numerous
turbine generator designs. The inverter comes standard with a
network communication kit, front panel monitoring, and a 5 year
warranty.
- Available in 10, 20, 30, 40, 60, 80, and 100kw Power
Ratings - Single or Three Phase Outputs
- 50Hz and 60Hz Models
- High Frequency IGBT Technology
- Sinusoidal Input Current / Low THD
- Microprocessor Controlled
- High Efficiency
- Anti-islanding protection
- 20-Year Designed Life
- LCD Monitoring Panel
- Light Gray Powder Coat Finish
- RJ45 Network Communications Kit
- Designed to meet UL1778, NEMA, NEC, ANSI, and FCC
Requirements
OPTIONS:
- Power Factor Correction Rectifier
- Integrated Galvanic Isolation Transformers
- Form "C" Alarm Interface Contacts
- Air Filtration
- Conformal Coating of PCBs
- Emergency Power Off/Shunt Trip
- Customizeable Designs for Unique Applications
NOTE: LTI Grid-Tie Inverters are customizable to
specific wind turbine power curves.

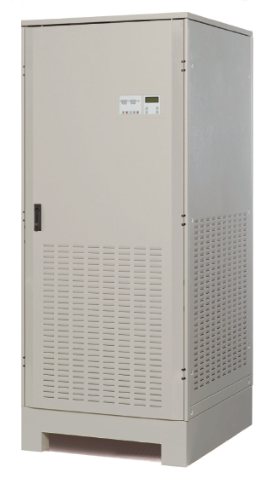

| 60-100kVA Floor Mount Grid-Tie Inverter |
| © 2011 LTI Power Systems Inc. | 888-327-5050 |
| 10-40KVA Wall Mount Grid-Tie Inverter |
